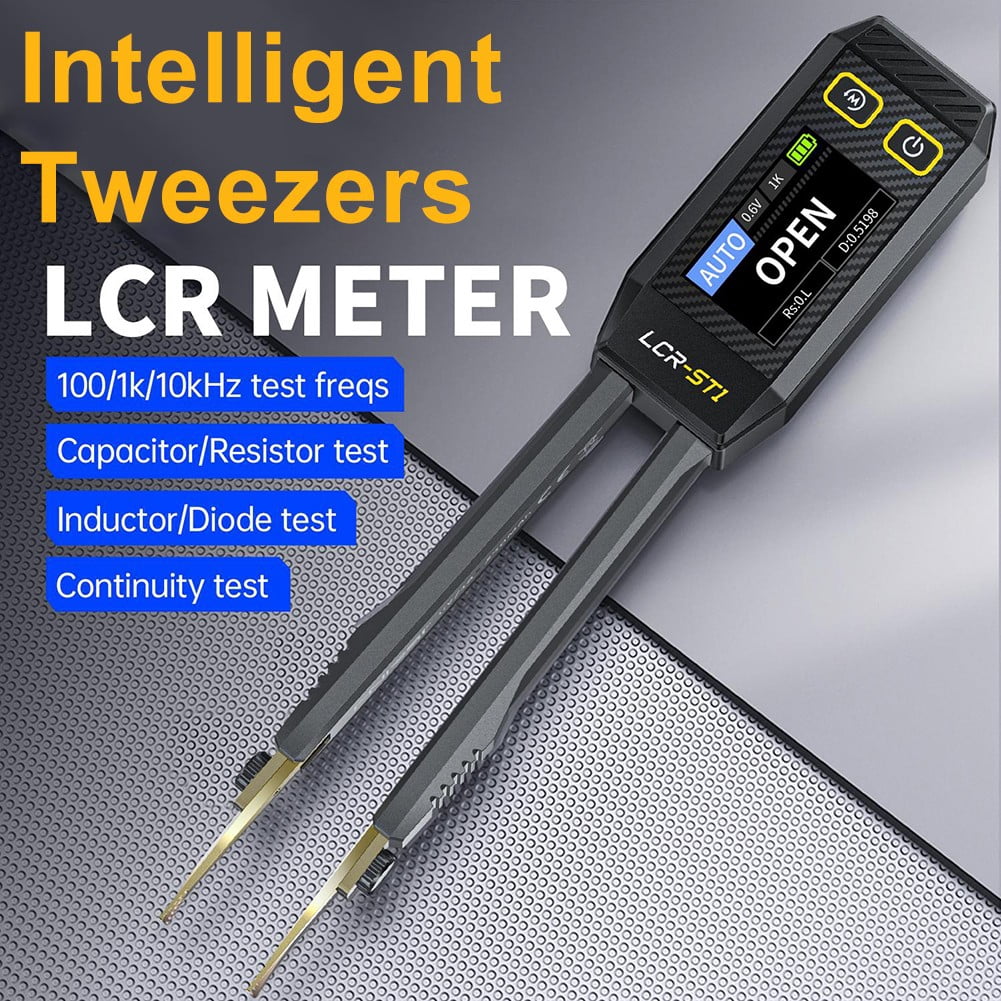

LCR-ST1 Digital BridgeMeter High for LCR Meter Tweezer Intelligent Tweezer

<p><strong>Features:</strong><br>Three-frequency test, effective value test level: supports three test frequencies of 100Hz, 1kHz, and 10kHz, and 0.3V.0.6Vrms effective value test level, making the test results comprehensive and accurate<br>Intelligent identification, automatic measurement: automatically identify components, and display the main and auxiliary parameters at the same time<br>Imported chips, stable and reliable: LCR-ST1 uses imported chips and advanced measurement algorithms, and performs well in stability<br>Convenient operation, clear at a glance: equipped with a 1.14-inch high-definition color display, the interface is clear and intuitive, and data reading is effortless, making your test work smoother and unimpeded<br>Memory retention, data retention: supports data retention, and automatically records data to generate for EXCEL tables, and views recorded data on the computer<br>Interchangeable tweezers head, flexible assembly: brass gold-plated material, two types of straight and bent tweezers heads can be replaced, high hardness, more listing, adapt to different application scenarios, and provide more accurate measurement stability<br><br><strong>Specifications:</strong><br>Part Name:Intelligent tweezer bridge<br>Color: As shown<br>Material: plastic<br>Model: LCR-ST1<br>Charging specifications: Type-C, 5V/1A<br>Screen: 1.14 inches<br>Size: 28×19×150mm<br>Power supply: 250mAh rechargeable lithium battery<br>Weight: 41g<br>Capacitance range: 1mF-22mF, luF-1mF, 1nF-1uF, 1pF-1nF<br>Inductance range: 1H-10H, 1mH-1H, 10uH-1mH, 1uH-10uH<br>Resistance range: 1ΜΩ-10ΜΩ, 1ΚΩ-1ΜΩ, 1Ω-1ΚΩ, 10mΩ-1Ω<br>Diode: On voltage 0.7V<br><br><strong>Package content:</strong><br>1*Intelligent tweezer bridge<br>1 pair of gold-plated tweezers with curved legs<br>1*Iron sheet (with backing)<br>1*USB data cable<br>1*Instruction manual<br><br><br>Note:<br>1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.<br>2. Please allow slight manual measurement deviation for the data.</p>

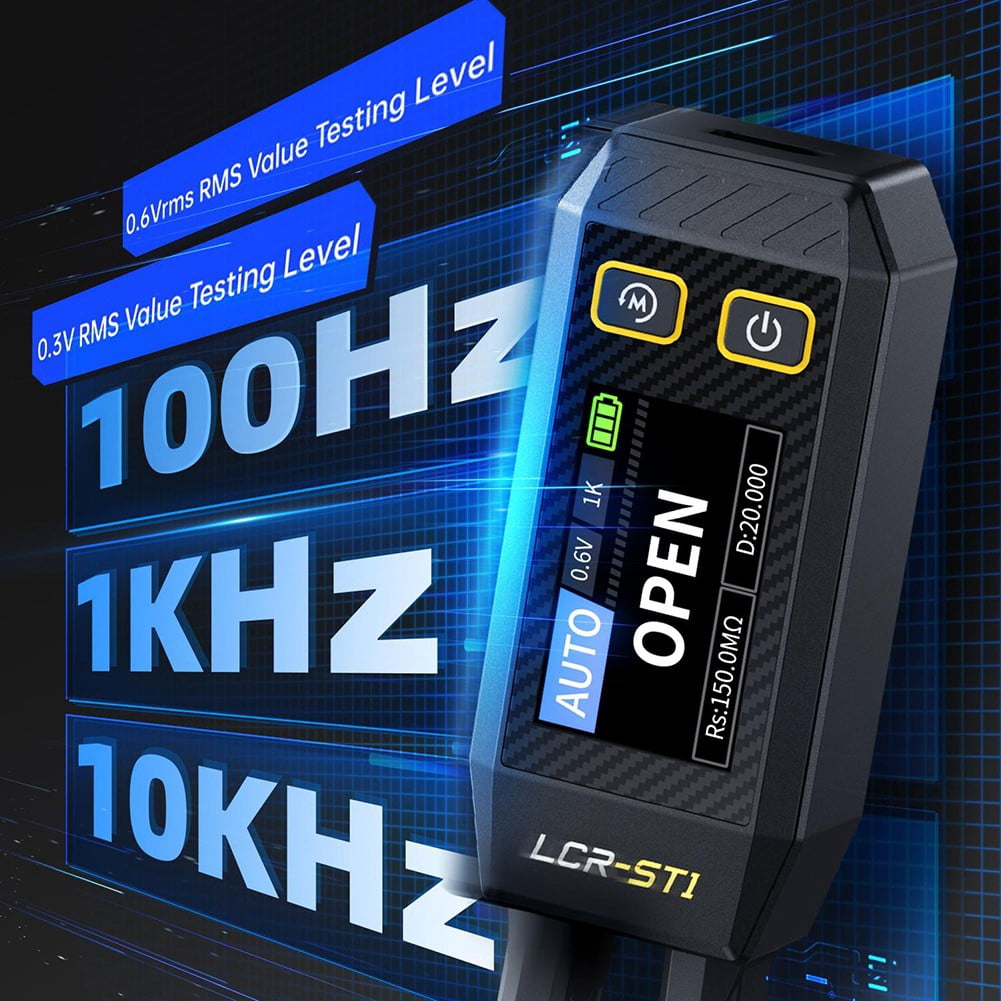

• 【Three-frequency Test for Comprehensive and Accurate Results】Supports three test frequencies of 100Hz, 1kHz, and 10kHz, with 3V.0.6Vrms effective value test level, comprehensive and accurate test results.
• 【Intelligent Identification and Automatic Measurement】Automatically identifies components and displays main and auxiliary parameters simultaneously, making testing easier and more efficient.
• 【Stable and Reliable Performance with Imported Chips】Utilizes imported chips and advanced measurement algorithms, stable and reliable performance.

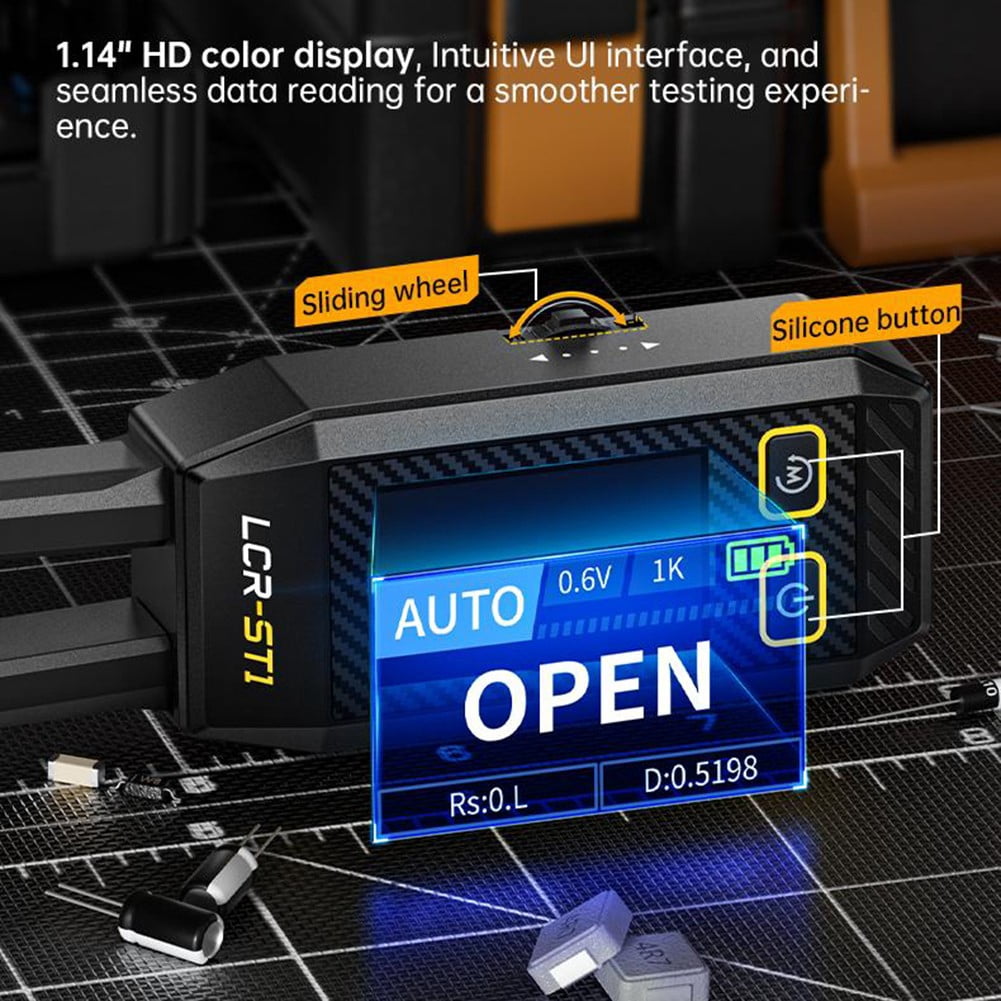

• 【Convenient Operation with Clear Display】Equipped with a 14-inch high-definition color display for clear and intuitive interface, allowing effortless data reading and smoother test work.

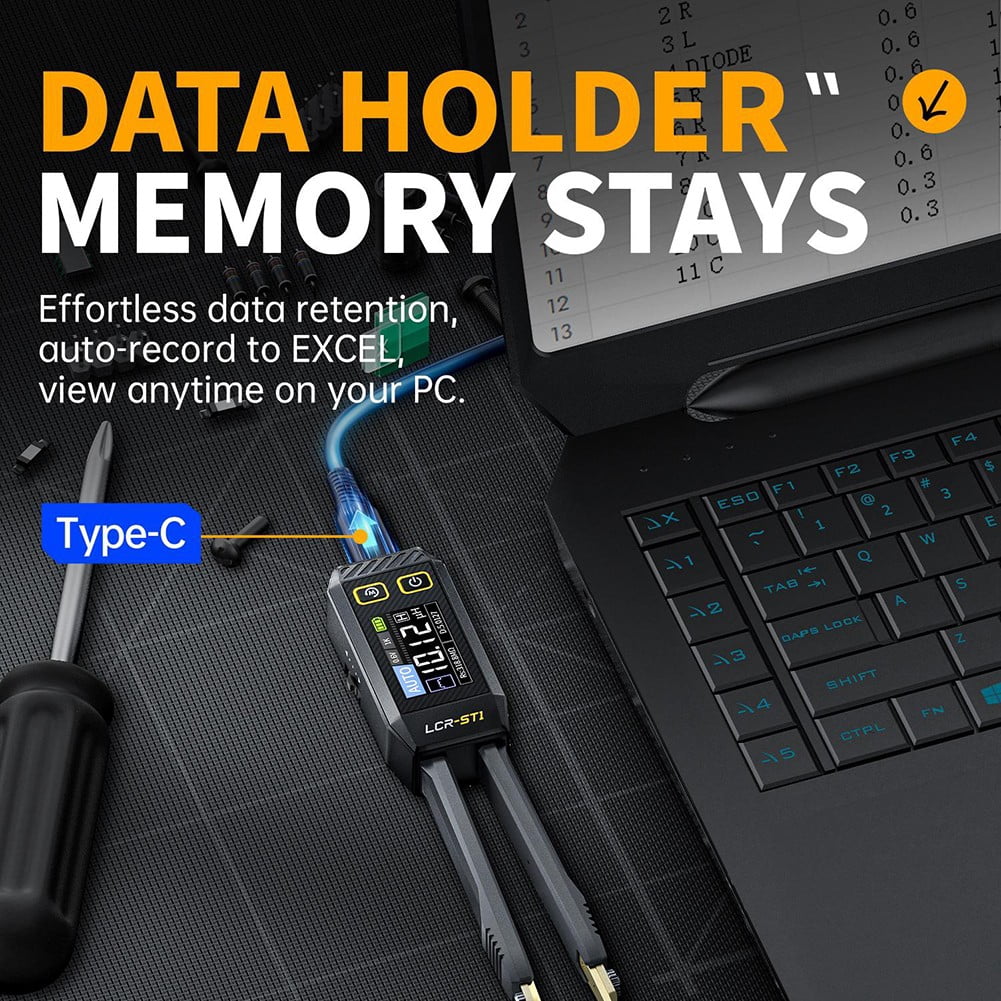

• 【Memory Retention and Data Recording】Supports data retention and automatically generates for EXCEL tables for recorded data, providing convenient for access and analysis on the computer.
