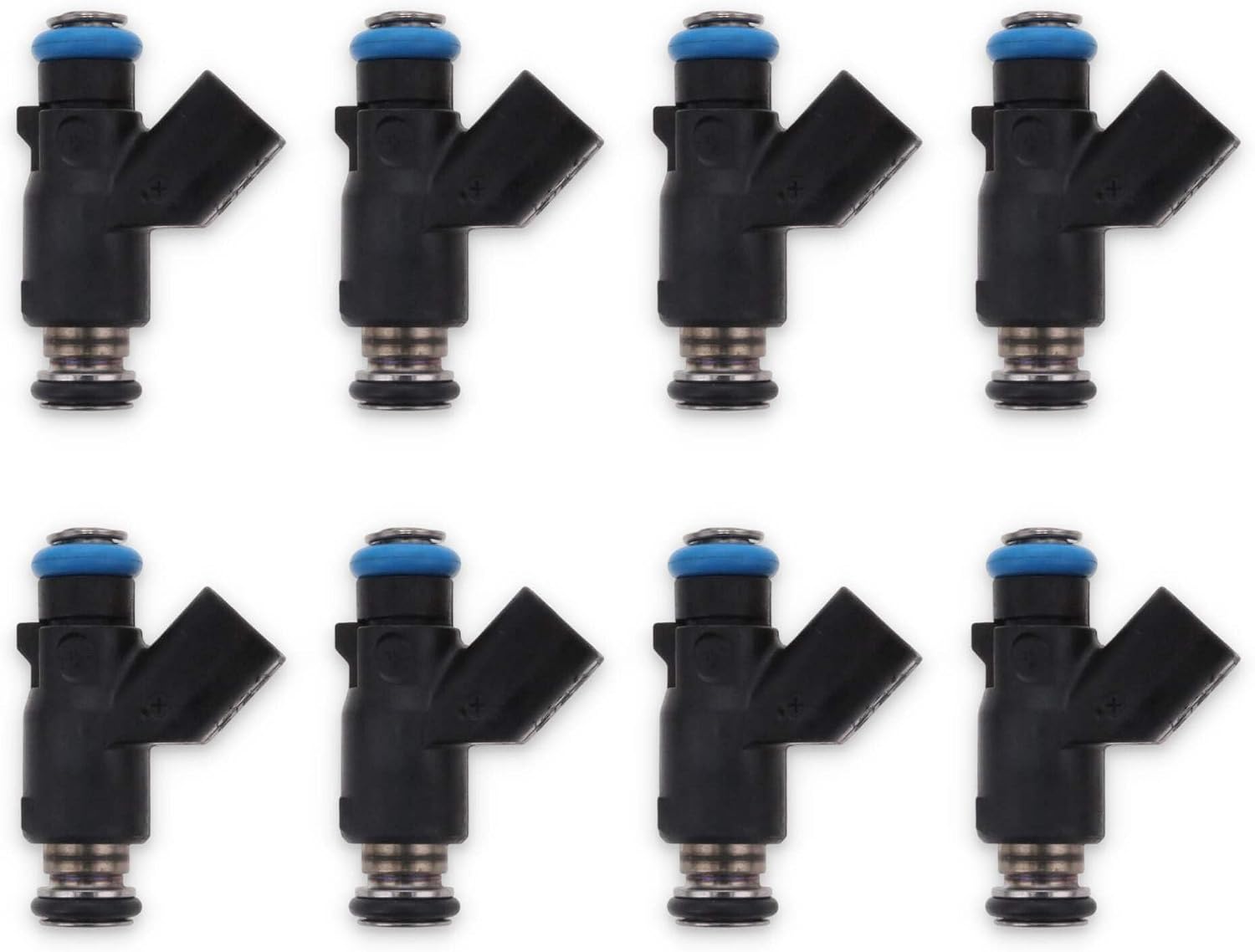

Top Street Performance Velocity High-Flow Fuel Injectors for GM Chevy LS3 and LS7 Flow Rate 160 lbs/hr

Configured for GM LS3/L92 rectangular-port applications, this fuel injector set supports precise fuel metering, consistent cylinder-to-cylinder delivery, and EFI calibration flexibility.Injector Flow & Fuel MeteringFlow rate is listed at 160 lbs./hr.. Driver type is listed as 12V Saturated Circuit. These details should be matched to the ECU, fuel pressure, and engine fuel demand.Plug / Terminal CompatibilityInjector plug style is USCAR. Terminal details include Male gender, Blade terminal type, and 2 terminals. Connector compatibility should be verified before installation or adapter selection.Injector Body & O-Ring FitSeat-to-seat height is 1.480 in.. Maximum outside diameter is 0.580 in.. O-ring details include manifold O-ring 0.580 in. and rail O-ring 0.551 in.. Confirm fuel rail fit, intake fit, and injector depth before installation.Calibration & System MatchingCommon use cases include Chevrolet Camaro, Chevrolet Corvette, Chevrolet Silverado. Injector flow rate, plug style, impedance, and calibration must be matched to the EFI system before startup.COMPATIBLE WITH:FITS THE FOLLOWING TSP VELOCITY COMBINATIONS 81003 LS3 Intake Manifold with 81009 Fuel Rails 81007 LS7 Intake Manifold with 81011 Fuel RailsNOTE: Will not work with stock applicationsCOMMON VEHICLE APPLICATIONS:Chevrolet SilveradoGMC SierraChevrolet CamaroChevrolet TahoeSPECIFICATIONS: Driver Type: 12V Saturated Circuit Flow Rate: 160 lbs./hr. Fuel Injection Type: Multi-port Fuel Rail O-ring Outer Diameter: 0.551 in. Fuel Type: Gas Injector Plug Style: USCAR Manifold O-ring Outer Diameter: 0.580 in. Maximum Outside Diameter: 0.580 in. O-Ring Quantity: 2 O-rings Included: Yes Quantity: Set of 8 Seat to Seat Height: 1.480 in. Terminal Gender: Male

• Compatible with LS3 and LS7 TSP intake manifolds
• Available with flow rates of 52 to 160 lbs/hr
